Main technical parameters:

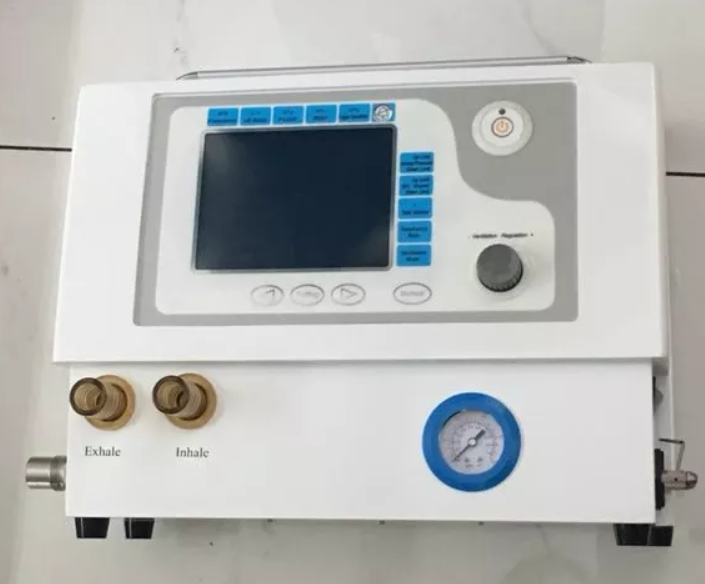

*Display mode 5.7 inch high clear display
*Ventilation mode
IPPV SIPPV SIMV PEEP MANUAL(SPONT) SIGH
*Ventilation parameters
Tidal volume 50~1500ml Frequency 4~60bpm
I:E 2:1~1:8 Trigger sensitivity -0.1~-1.0Kpa
PEEP 0~1.0Kpa Pressure control 1~6Kpa
SIGH 1.5 breath times
*Ventilation monitoring parameters
Tidal volume,Ventilation,IPPV ratio,breath/expiratory ratio,peak pressure,Pressure-time wave,velocity-time wave,total respiratory rate,airway pressure wave,PEEP,breath pressure trigger
*Monitoring oxygen concentration 21%~100% (choose and match )
*Security Alert System
Oxygen concentration alarm (choose and match )
Upper limit setting range 50%~100%
Low limit setting range 15%~50%
Airway pressure alarm
Upper limit setting range 1 ~6 KPa
Low limit setting range 0.4~2 KPa
Minute volume alarm
Upper limit setting range 3.0~30L/min
Low limit setting range 1~10L/min
Asphyxia alarm
The machine will give sound and light alarm if there is no tida volume input in 15s Power failure alarm
*Power AC 220V±10% 50Hz±1Hz UPS,Battery (choose and match)
