Feature:
1,The Ventilator adopts microcomputer control with high-definition 5.7” LCD display, integrating the functions of respiratory control and displaying the monitoring parameters. It is versatile in function and excellent in performance.
2,The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate.
3,High-definition four-tube flowmeter, designed with stoppers for oxygen and nitrous oxide to control the output oxygen concentration.
4,Reliable pneumatic transmission system.
5,Economic and proper configuration of technologies, optional as required by the Customer.
6,Modularized design and upgrading. Upgrading is available as required by the Customer.
Part of Anesthesia
| 1.Main body | High-strength engineering plastic rack, light,beautiful and corrosion resistant |
| 2.Scope of application | Adult, Child |
| 3.Gas source | O2, N2O: 0.27~0.55MPa ; N2O: 0.27~0.55MPa |
| 4.Flow meter | O2: 0.1~1.0L/min 1.1~10L/min; N20: 0.1~1.0L/min 1.1~10L/min; |
| 5.O2, N2O linkage and N2O Stopper | When using nitrous oxide, oxygen concentration>25%;When the oxygen pressure<0.2Kpa, the flow of nitrous oxide would be cut off. |
| 6.Flow rate of rapid oxygen supply | 25~75L/min |
| 7.Low oxygen pressure alarm | There will be sound alarm when the oxygen pressure < 0.2MPa |
| 8.Vaporizer | It has the function of automatic compensation based on pressure,temperature,and flow rate. The regulation range of evaporator concentration is 0~5 vol%. |
| 9.Respiratory circuit | Working mode: all-close, semi-close, semi-open |
| APL: 0.5~7 kPa |
| 10.Respiratory bellows | bellows for adults, bellows for children tidal volume range:0~1500 ml; |
Part of Ventilator
| 1.Display mode | High-definition 5.7" LCD screen display |
| 2.Ventilation mode | IPPV, MANUAL (Manual monitoring of tidal volume, ventilation volume, respiratory rate) |
| 3.Ventilation parameters | Tidal volume 50~1500ml |
| Rate 2~99 bpm |
SIMV rate 2~20 bpm |
| I:E 2:1~1:8 |
Inspiratory trigger pressure -1.0~2.0 kPa |
PEEP 0~2.0 kPa |
Pressure range 1.0~6.0 kPa |
SIGH 1.5 times the inspiratory time (70-150 adjustable) |
| 4.Parameters for ventilation monitoring | tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, average pressure, pressure - time waveform, flow rate - time waveform,PEEP,inspiratory trigger pressure. |
5.Security Alarm System | Airway Pressure alarm | upper limit setting range | 1.0~6.0kPa |
| low limit setting range | 0.2~5.0kPa |
Per-minute ventilation volume alarm | upper limit setting range | 3.0~30L/min |
| low limit setting range | 1.0~10L/min |
| Sustained high-pressure alarm | it will give alarm when stress have consistently been higher than 2.5 kPa |
| Suffocation alarm | it will give sound and light alarm if there is no tidal volume input for 15 second. |
| Power alarm | |
| 6.Power | AC 220V±10% 50Hz±1Hz |

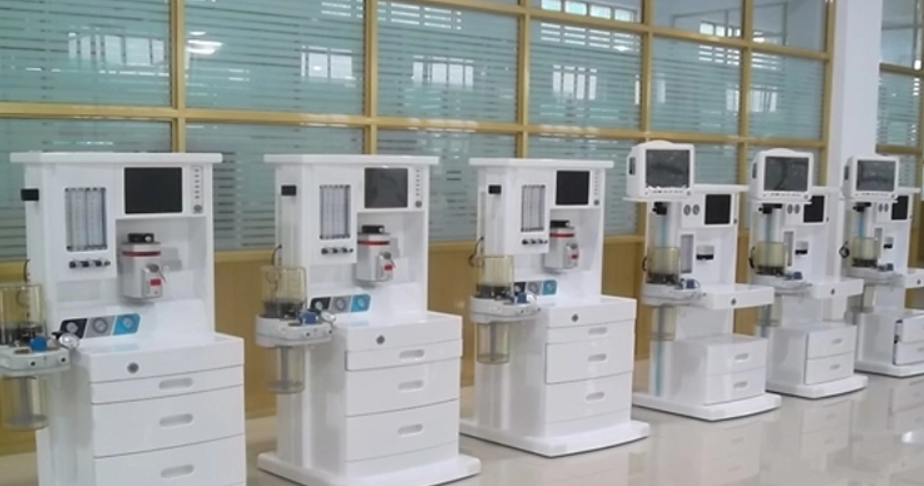

Factory:
