Anesthesia Machine

1.Main body: High-strength engineering plastic rack, light, beautiful and corrosion resistant

2.Scope of application : Adult, Child

3.Gas source : O2: 0.27~0.55MPa N2O: 0.27~0.55MPa

4.Flow meter: O2: 0.1~1.0L/min 1.1~10L/min ; N20: 0.1~1.0L/min 1.1~10L/min

5.O2, N2O linkage and N2O Stopper :

1) When using nitrous oxide, oxygen concentration>25%;

2) When the oxygen pressure<0.2Kpa, the flow of nitrous oxide would be cut off.

6.Flow rate of rapid oxygen supply : 25~75L/min

7.Low oxygen pressure alarm : There will be sound alarm when the oxygen pressure < 0.2MPa

8.Vaporizer : It has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0~5 vol%. Among Halothane,one can be chosen for application as required by the customer. And vaporizers that are imported with original packaging are also available.

9.Respiratory circuit : working mode: all-close, semi-close, semi-open

releasing pressure: 0.5~7 kPa

10. Respiratory Bellows : bellows for adults, bellows for children tidal volume range:0~1,500 ml

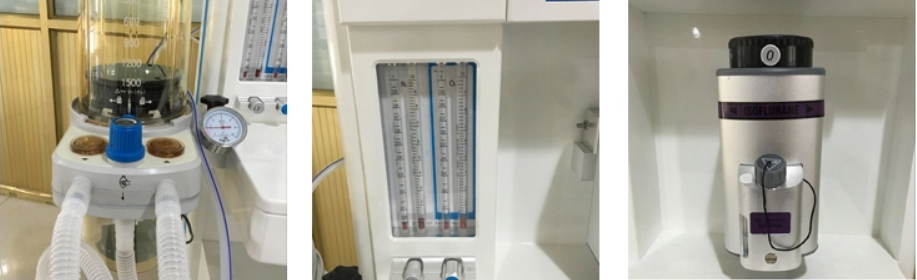

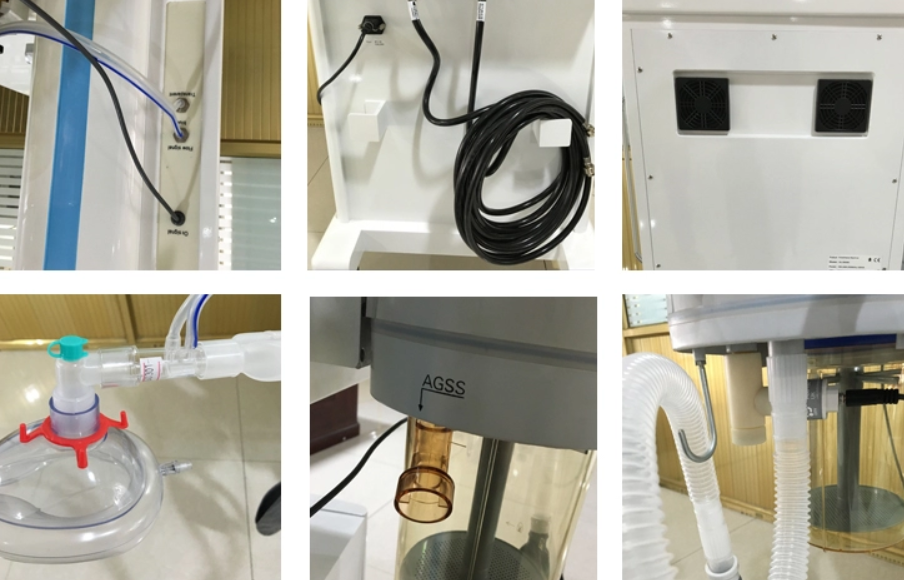

Details:

Packing:
