Feature:
R-560B1 is an economic type of Anesthesia Machine.
1. The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for pressure,temperature and flowrate.
2. Reliable pneumatic transmission system.
3. Economic and proper configuration of technologies, optional as required by the Customer.
4. Modularized design and upgrading. Upgrading is available as required by the Customer.
Part of Anesthesia
| 1.Main body | High-strength engineering plastic rack, light,beautiful and corrosion resistant |
| 2.Scope of application | Adult, Child |
| 3.Gas source | O2, N2O: 0.27~0.55MPa |
| 4.Flow meter | O2: 0.1~1.0L/min 1.1~10L/min |
| 5.Flow rate of rapid oxygen supply | 25~75L/min |
| 6.Low oxygen pressure alarm | There will be sound alarm when the oxygen pressure < 0.2MPa |
| 7.Vaporizer | It has the function of automatic compensation based on pressure,temperature,and flow rate. The regulation range of evaporator concentration is 0~5 vol%. |
| 8.Respiratory circuit | Working mode: all-close, semi-close, semi-open |
| Releasing pressure: 0.5~7 kPa |
| 9.Respiratory bellows | bellows for adults, bellows for children tidal volume range:0~1500 ml |
Part of Ventilator
| 1.Display mode | High-definition 4.8” LCD screen display |
| 2.Ventilation mode | IPPV, MANUAL (Manual monitoring of tidal volume, ventilation volume, respiratory rate) |
| 3.Ventilation parameters | Tidal volume 50~1500ml |
| Rate 4~80 bpm |
| I:E 2:1~1:4 |
| Pressure range 1.0~6.0 kPa |
| 4.Parameters for ventilation monitoring | tidal volume, ventilation volume, IPPV rate, I/E, peak pressure of airway, inspiratory trigger pressure, pressure - time waveform |
| 5.Security Alarm System | Airway pressure alarm | Paupper limit setting range | 1.0~6.0 k |
| low limit setting range | 0.4~2.0 kPa |
| TV alarm | Paupper limit setting range | 0.5~2.0L |
| low limit setting range | 0.02~1.0L |
| Sustained high-pressure alarm | it will give alarm when stress have consistently been higher than 2.5 kPa |
| Suffocation alarm | it will give alarm when stress have consistently been higher than 2.5 kPa |
Power alarm
| |
6.Power

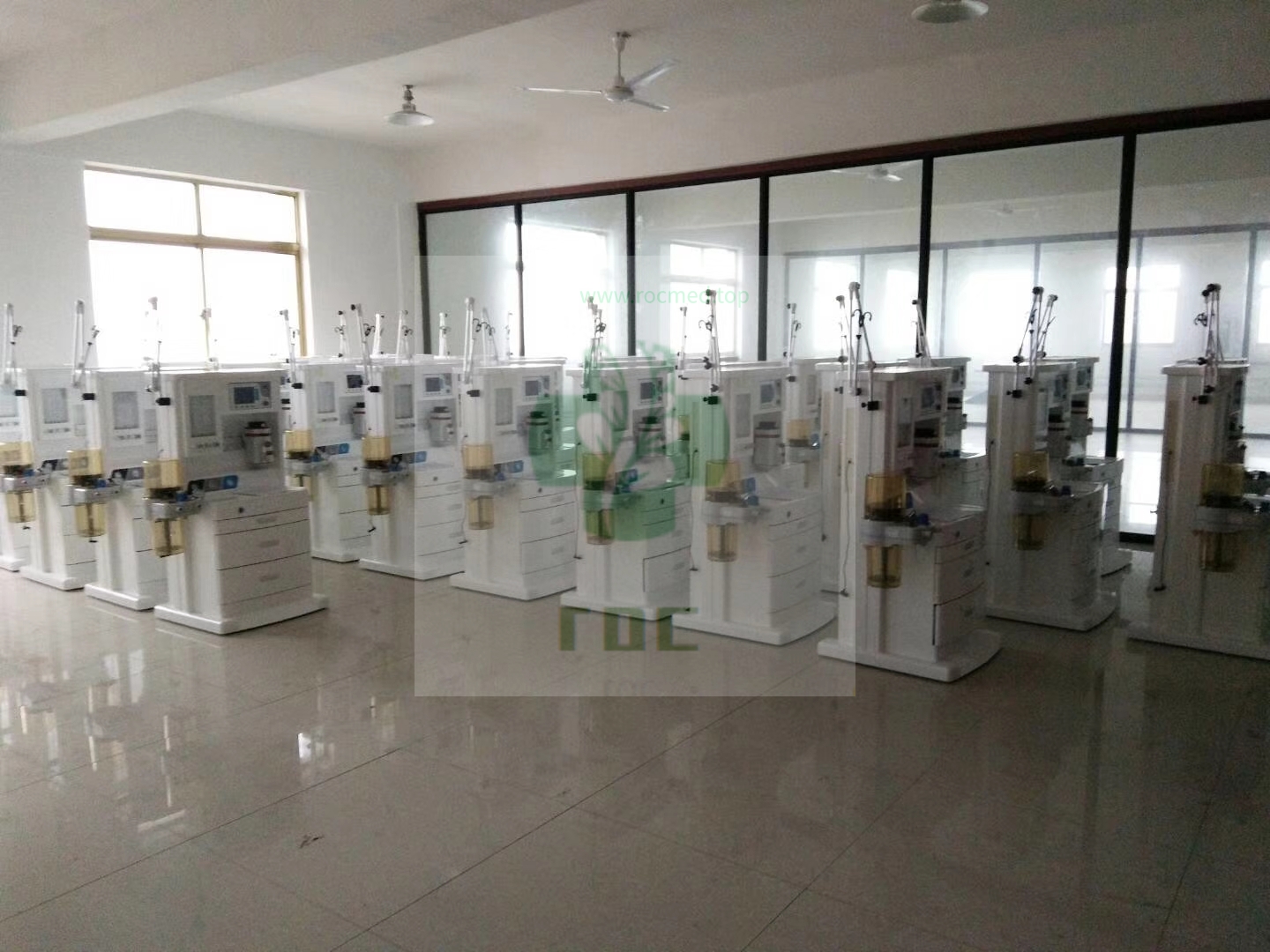

Our factory:
| AC 220V±10% 50Hz±1Hz
|
