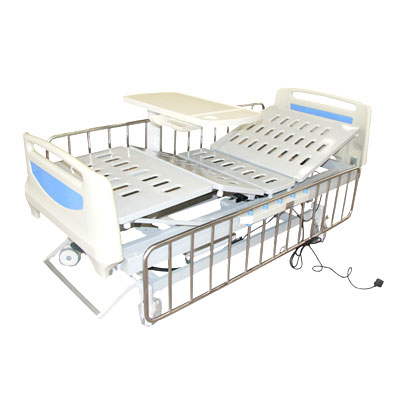

Feature:
- Made of superior cold-rolled steel
- One step forming sleeping bed
- Treated by shot blasting, electrophoresis and powder coating
- complete stainless steel siderails
- Degree indicator for head elevation inside of siderails
- Central braking system-5 inch diameter castor
- Three independent motors
-IV stand holder, Urine hook, IV pole
-auto contour feature simultaneously raises both the head and the knees
Standard Specifications
| Model number | ROC06-315 |
| Measurement | Overall size(L*W*H): 2160*1050*450-700mm(with 5 inch diameter castor)
Patient Touching surface: 1960*900mm
Siderails up: 1050mm
Siderail down:990mm |
| Weight Load | Fully tested sturdy construction capable of taking a maximum user weight of up to
250kg |
| Function | Backrest max upward angle: 75° |
| Footrest max upward angle: 40° |
| Height:450-700mm(castor diameter: 5 inch) |
| Power | 220VAC or 110VAC Frequency: 50-60HZ
Power Plug: EU type standard if other type, confirm each order |
Standard Accessories List
| Headboard/Footboard | 1 set |
| Siderails | 4 pcs |
| I.V pole | 1 piece |
| Castor | 4 pieces/5 inch |
| Drainage Hook | 2 pieces |
| Motor | 3 pcs |
