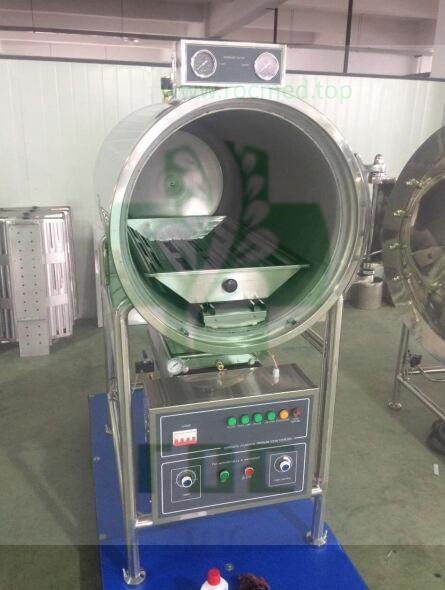

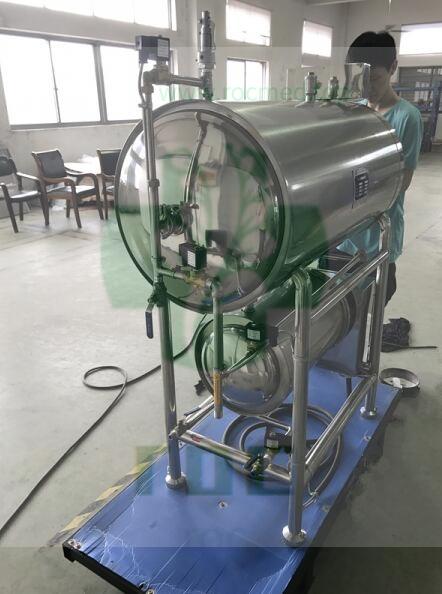

Fully stainless steel structure Horizontal cylindrical pressure steam sterilizer
Model Number:
Place of Origin:
Added:2020-08-06
Views:
Telephone:
Keywords:
Next Previous

Product Details

l Sterilizing course automatic sterilization controlled,easy to operate.

l With drying function,suitable dressing drying.

l With over-temperature,over-pressure auto-protect device.

l The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.

l The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.

l The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.

l Fully stainless steel structure.

Technical Data Model

WS-150YDC

WS-200YDC

WS-280YDC

WS-400YDC


Sterilizing chamber

Volume

150L

φ480×1000mm

200L

φ515×1000mm

280L

φ600×1000mm

400L

φ700×1100mm


working pressure

0.22MPa


working temperature

134


Adjustment of temperature

40- 134


Time of sterilization

0-99 min


Time of drying

0-99 min


Heat average

≤±2


Power

9KW/380V 50Hz

9KW/380V 50Hz

12KW/380V 50Hz

18KW/380V 50Hz


Dimension

1400×600×1300

1400×670×1650

1400×770×1780

1430×880×1830


Transport dimension

1550×750×1850

1560×820×1850

1680×920×2100

1600×1050×2100


G.W/N.W

320/240 KG

350/260 KG

465/365 KG

530/420 KG
