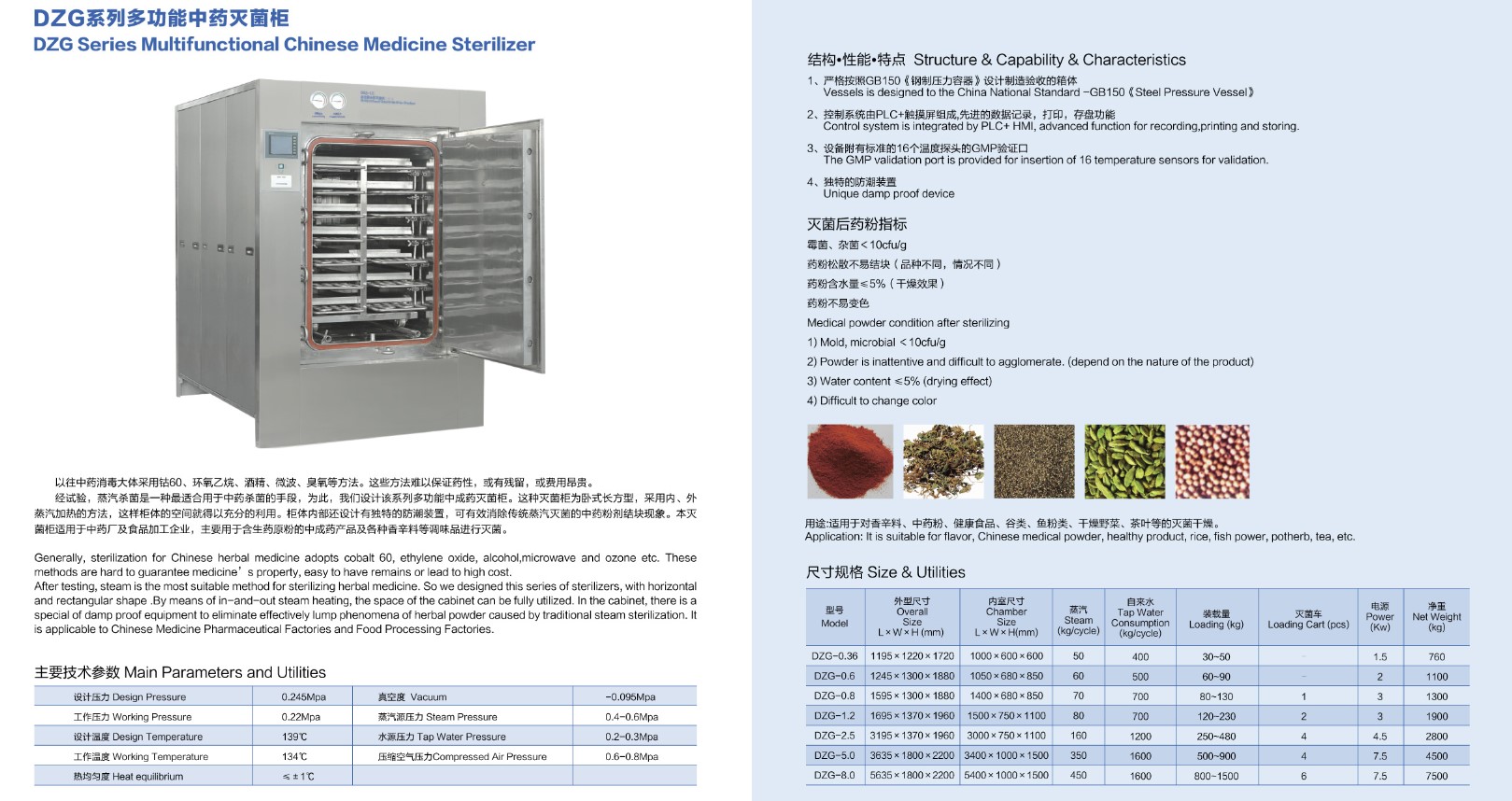

Former sterilization for Chinese herbal medicine usually adopts cobalt60,ethylene oxide, alcohol;microwave,ozone etc.These methods are hard to guarantee medicine’s property,easy to have remains or lead to expensive coste.By testing, steam is the most suitable method for sterilizing herbal medicine.So we designed this series of sterilizers,with horizontal and rectangular shape.By means of in-and-out steam heating,the space of the cabinet can be fully utilized.Ln the cabinet, there is a special of dqmp proof equipment to eliminate effectively lump phenomena of herbal powder caused by traditional steam sterilization.It is applicable to Chinese Pharmaceutical Factores

■ Main Parameters & Utilities

■ Structure&Capability&Characteristics

·The box is designed, produced and tested strictly according to the《 Steel Pressure Vessel》
·National patent door interlock
·National patent sealing technology of inner gas
·Reliable and stable micro-computer PLC＋touch screen control,advanced function for recording, printing and storing
·Elegant stainless steel decorate cover
·The heat preservation layer is made by polyurethane material and pearl rock wool
·The GMP confirmation access is fixed on the equipment
·Unique damp proof device
·Medical powder condition after sterilizing
.Mould,microbial<10cfu/g
.(Powder is inattentive and difficult to agglomerate(different breeds defferent condition)
. Water contain≤3%(drying of the product)
.Difficult to change color

Function:It is suitable for flavor,Chinese medical powder,healthy product,rice,fish powder,potherb,tea,etc.

■ Size&Utilities
