| Power supply | AC220V, 50Hz |
| Input Power | 6KVA |
| The bridge length | 2500 ~ 3200mm |
| The main material | high-strength aluminum alloy |
| The surface treatment | using imported high-voltage electrostatic powder spray |
| Standard accessories | lights 2pcs |
| Power valve 1pc |
| Gas valve 1pc |
| Optional accessories | cantilevered work lights |
| camera |
| The dry section of the column |
| Right and left movement | 200 ~ 500mm |
| arm rotation radius | 500mm |
| arm and function box horizontal rotation angle | 340 ° |
| instrument platform | Layer 3 (height adjustStandard accessoriesable); rounded bumper design, weight load 50KG |

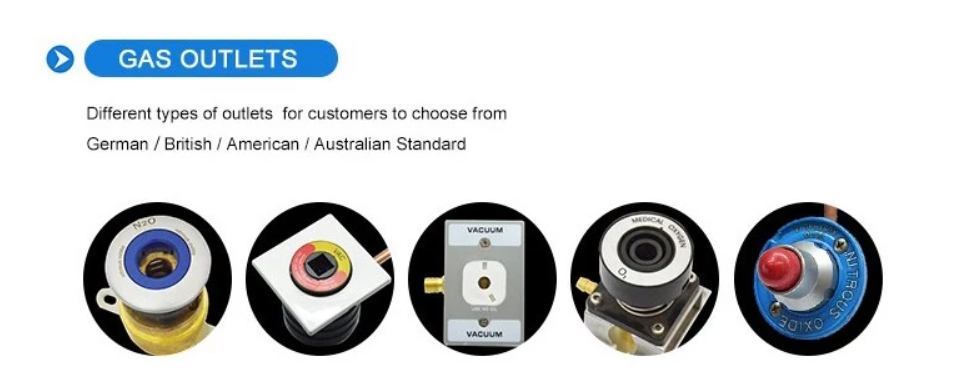

| gas terminal standard configuration | oxygen 1pc |
| sunction 1pc |
| air 1pc |
| Desings | Different colors and shapes, with anti-pick wrong function |
| more than 20,000 times mating cycles |
| using the secondary seal, with three states (on, off, pull), can carry air service |
| outlet | 6pcs(220V / 10A) |
| ground terminals | 2pcs |
| Network Interface | RJ45 1pc |
| drawer | 1pc |
| brake | 1pc |
| adjustable stainless steel infusion pump IV pole | 1 set |
| Weight load | 300kg |
| The wet section of the column |
| Right and left movement | 200 ~ 500mm |
| arm rotation radius | 500mm |
| arm and function box horizontal rotation angle | 340 ° |
| instrument platform | Layer 2 (height adjustable), rounded bumper design, weight load 20KG |
| gas terminal standard configuration | oxygen 1pc |
| sunction 1pc |
| air 1pc |
| Designs | Different colors and shapes, with anti-pick wrong function |
| more than 20,000 times mating cycles |
| using the secondary seal, with three states (on, off, pull), can cararm rotation radiusry air service |
| outlet | 8pcs(220V / 10A) |
| ground terminals | 2pcs |
| drawer | 1pc |
| brake | 1pc |
| adjustable stainless steel infusion pump IV pole | 1 set |
| Storage basket | 1pc |
| Weight load | 150kg |
